Equipos Industriales RICE, le propone a usted ®diseños de máquinas pesqueras que pueden contribuir a potenciar la producción pesquera, haciéndola mas eficiente, rentable y segura para los productores pesqueros, además de equipos como bombas y poleas para utilizarse en las diferentes tareas productivas como minería, construcción o agricultura.

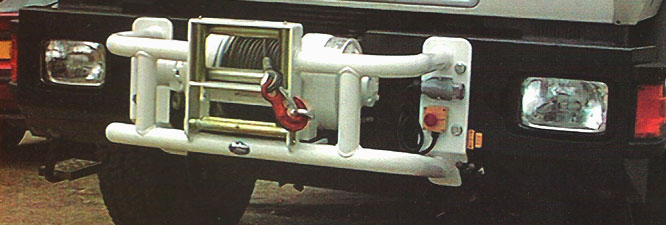

...PULLMASTER WINCHES


	Haz click en las fotos para ver la galeria

Equipo industrial o Distribuidores en el Pacifico mexicano toda la linea de winches

Model	Bare Drum		Full Drum		Drum Capacity
Model	Line Pull	Line Speed	Line Pull	Line Speed	Drum Capacity
PL1-12-227-1	1,100 LB	78 fpm	821 lb	104 fpm	1/4" -87 ft
PL1-12-227-1	4.9 KN	24m/min	3.7 KN	32m/min	27m
PL2-12-221-1	2,204 lb	83 fpm	1,633 lb	111 fpm	5/16" - 122 ft
PL2-12-221-1	9.8 KN	25m/min	7.3KN	34m/min	37m
PL2A-12-221-1	1,285 lb	142 fpm	952	189 fpm	5/16" - 122 ft
PL2A-12-221-1	5.7 KN	43m/min	4.2 KN	58m/min	37m
PL5A-12-212-1	5,000 lb	60 fpm	3,698 lb	82 fpm	7/16"- 110 ft
PL5A-12-212-1	22.2 KN	18m/min	16.4 KN	25m/min	34m
PL5-12-210-1	4,500 lb	135 fpm	3,328 lb	183 fpm	7/16" - 110 ft
PL5-12-210-1	20.0 KN	41m/min	14.8 KN	56m/min	34m
PL5-12-211-1	4,000 lb	72 fpm	3,098 lb	92 fpm	7/16" - 110 ft
PL5-12-211-1	17.8	22m/in	13.8 KN	28m/min	34m
PL5-12-213-1	2,000 lb	142 fpm	1,479 lb	191 fpm	7/16" - 110 ft
PL5-12-213-1	8.9 KN	43m/min	6.6 KN	58m/min	34 m
PL8-3-30-1	7,000 lb	122 fpm	5,202 lb	164 fpm	1/2" - 196 ft
PL8-3-30-1	31.1 KN	37m/min	23.1 KN	50m/min	60m

M SERIES Equal Speed in Both Directions
H SERIES Rapid Reverse
Model	Bare Drum		Full Drum		Drum Capacity
Model	Line Pull	Line Speed	Line Pull	Line Speed	Drum Capacity
M5-3-222-1	6,000 LB	69 fpm	4,091 lb	101 fpm	1/2" -152 ft
M5-3-222-1	26.7 KN	21m/min	18.2 KN	31m/min	46m
M8-3-30-1 H8-3-30-1	8,500 lb	116 fpm	5,795 lb	170 fpm	1/2" - 152 ft
M8-3-30-1 H8-3-30-1	37.8 KN	35m/min	25.8 KN	52m/min	46m
M8A-3-30-1 H8A-3-30-1	7,000 lb	135 fpm	4,773 lb	199 fpm	1/2" - 152 ft
M8A-3-30-1 H8A-3-30-1	31.1 KN	41m/min	21.2 KN	61m/min	46m
M8B-3-30-1 H8B-3-30-1	3,790 lb	249 fpm	2,584 lb	366 fpm	1/2" - 152 ft
M8B-3-30-1 H8B-3-30-1	16.9 KN	76m/min	11.5 KN	111m/min	46m
M12-3-97-1 H12-3-97-1	12,121 lb	104 fpm	7,143 lb	176 fpm	5/8" - 222 ft
M12-3-97-1 H12-3-97-1	53.9 KN	32m/min	31.8 KN	54m/min	68m
M12B-3-97-1 H12B-3-97-1	6,120 lb	205 fpm	3,606 lb	348 fpm	5/8" - 222 ft
M12B-3-97-1 H12B-3-97-1	27.2 lb	63m/in	16.0 KN	106m/min	52m
M18-3-101-1 H18-3-101-1	18,000 lb	122 fpm	11,288 lb	195 fpm	3/4" - 170 ft
M18-3-101-1 H18-3-101-1	80.1 KN	37m/min	50.2 KN	59m/min	43 m
M25-7-86-1 H25-7-86-1	25,000 lb	140 fpm	16,860 lb	207 fpm	7/8" - 140 ft
M25-7-86-1 H25-7-86-1	111.2 KN	43m/min	75.0 KN	63m/min	43m
M25B-7-86-1 H25B-7-86-1	12,698 lb	273 fpm	8,564 lb	405 fpm	7/8" - 140 ft
M25B-7-86-1 H25B-7-86-1	56.5 kn	83m/min	38.1 KN	124m/min	43m
M50-7-86-1 H50-7-86-1	50,000 lb	69 fpm	33,889 lb	102 fpm	1 1/4" - 177 ft
M50-7-86-1 H50-7-86-1	222.4 KN	21m/min	150.7 KN	31m/min	54 m
M75-7-191-1 H75-7-191-1	75,000 KN	72 fpm	41,748 lb	129 fpm	1 1/8" - 727 ft
M75-7-191-1 H75-7-191-1	333.3 KN	22 m/ min	185.6 KN	39m/min	222m

HL SERIES Rapid Reverse & 2-Speed Forward
Model	Low Speed				High Speed				Drum Capacity
	Bare Drum		Full Drum		Bare Drum		Full Drum
	Line Pull	Line Speed	Line Pull	Line Speed	Line Pull	Line Speed	Line Pull	Line Speed
HL25-7-86-1	25,000 LB	140 fpm	16,860 lb	207 fpm	5,357 lb	651 fpm	3,613 lb	956 fpm	7/8" -140 ft
HL25-7-86-1	112.2 KN	43m/min	75.0 KN	63m/min	23.8 KN	198m/min	16.1 KN	294m/min	43m
